Maps & Procedural Generation

A PGTG map is a grid of tiles, each a block of cells (9×9 in the default tile set). PGTG can either generate a random map every episode or load a fixed map from a file.

Tiles

Maps are assembled from a small set of road tiles. Each tile is characterized by its exits, i.e., which of the four sides (north, east, south, west) connect to a neighbor:

From left to right: straight, turn, T-crossing, four-way crossing, and dead end. Every rotation of these five shapes is a distinct tile, identified by its (north, east, south, west) exit tuple of 0/1 flags. For instance, (1, 0, 1, 0) is a vertical straight and (1, 1, 1, 1) is a four-way crossing.

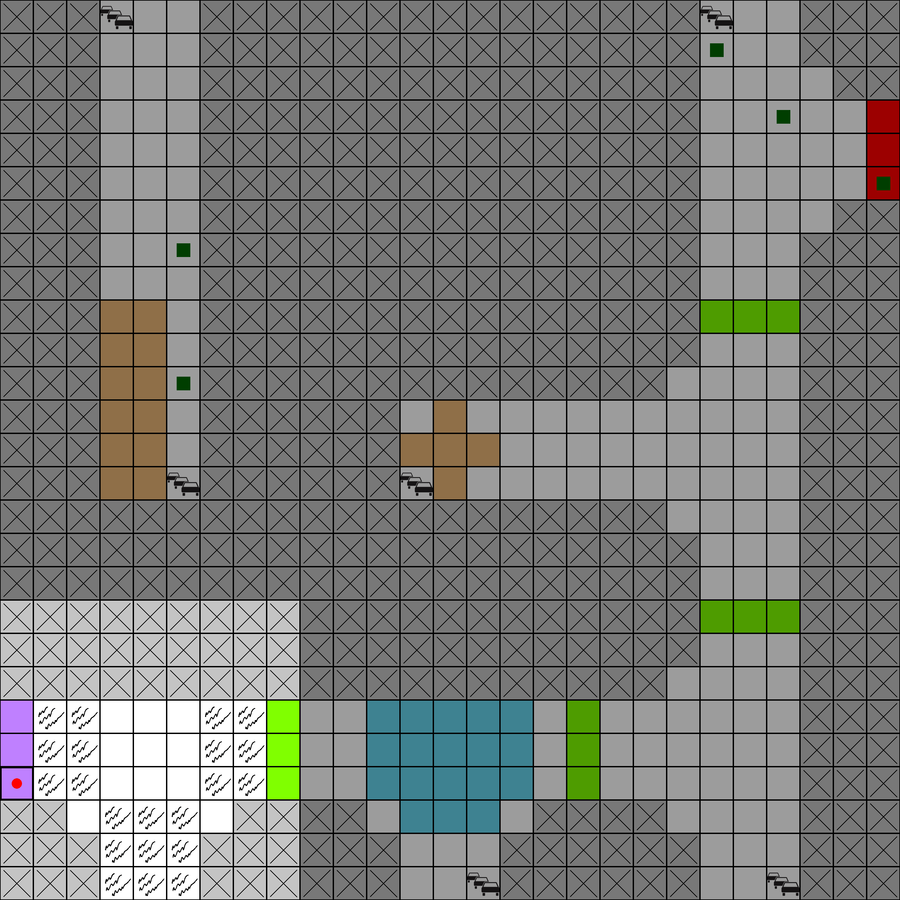

Procedural generation

When map_path is None (the default), a new random map is generated each episode from the RandomMapContext. The pipeline is:

1. Build a connectivity graph. Start from a grid where every adjacent tile pair is an edge, attach virtual start and goal nodes on the requested borders, then randomly remove edges down to connections_percentage of the total.
2. Convert the graph to tiles. Each tile's exits are read off from which neighbors remain connected.
3. Place obstacles. If obstacle_probability > 0, each non-empty tile independently receives an obstacle type with that probability; the type is drawn from obs_feature_weights and stamped onto the tile through an obstacle mask (traffic-light masks are chosen to match the tile's exits).

Key parameters (see Configuration Reference):

Parameter	Effect
width, height	Map size (in tiles).
connections_percentage	Density of connections. 0.0 gives a minimal start→goal path; 1.0 a fully connected grid.
start_position, goal_position	Where start/goal sit on the border, or "random".
min_dist_start_goal	Minimum path length between start and goal (only with random positions).
obstacle_probability	Per-tile chance of an obstacle.
obs_feature_weights	Relative weights for which obstacle type is chosen.

from pgtg import PGTGEnv
from pgtg.contexts import RandomMapContext

env = PGTGEnv(
    random_map_context=RandomMapContext(
        width=3,
        height=3,
        connections_percentage=0.6,
        obstacle_probability=0.3,
        obs_feature_weights={"ice": 2.0, "sand": 1.0},  # ice twice as likely as sand
    ),
)

or equivalently:

import gymnasium as gym
import pgtg

env = gym.make(
    "pgtg-v5",
    random_map_context={
        "width": 3,
        "height": 3,
        "connections_percentage": 0.6,
        "obstacle_probability": 0.3,
        "obs_feature_weights": {"ice": 2.0, "sand": 1.0},
    },
)

Default benchmark maps

For reproducible evaluation, PGTG ships four fixed, preconstructed maps. Unlike random maps they are identical across runs, which makes them well suited for controlled comparison. Each is a square grid of tiles, generated with a high connection rate (connections_percentage of 0.8), so they are densely connected and offer many alternative routes:

Name	Size (tiles)	Size (cells)	Discoverable cells

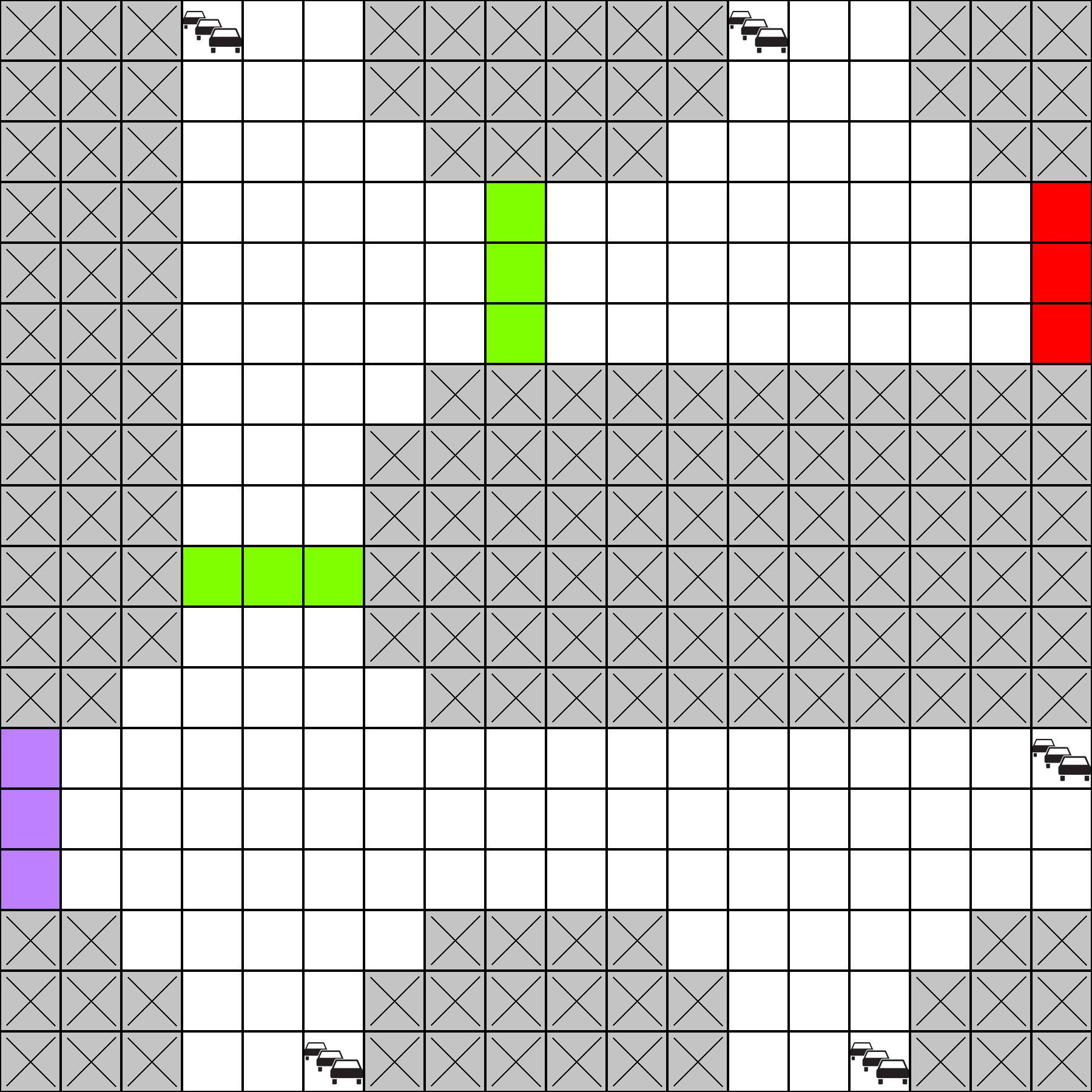

benchmark_2x2	2 × 2	18 × 18	163

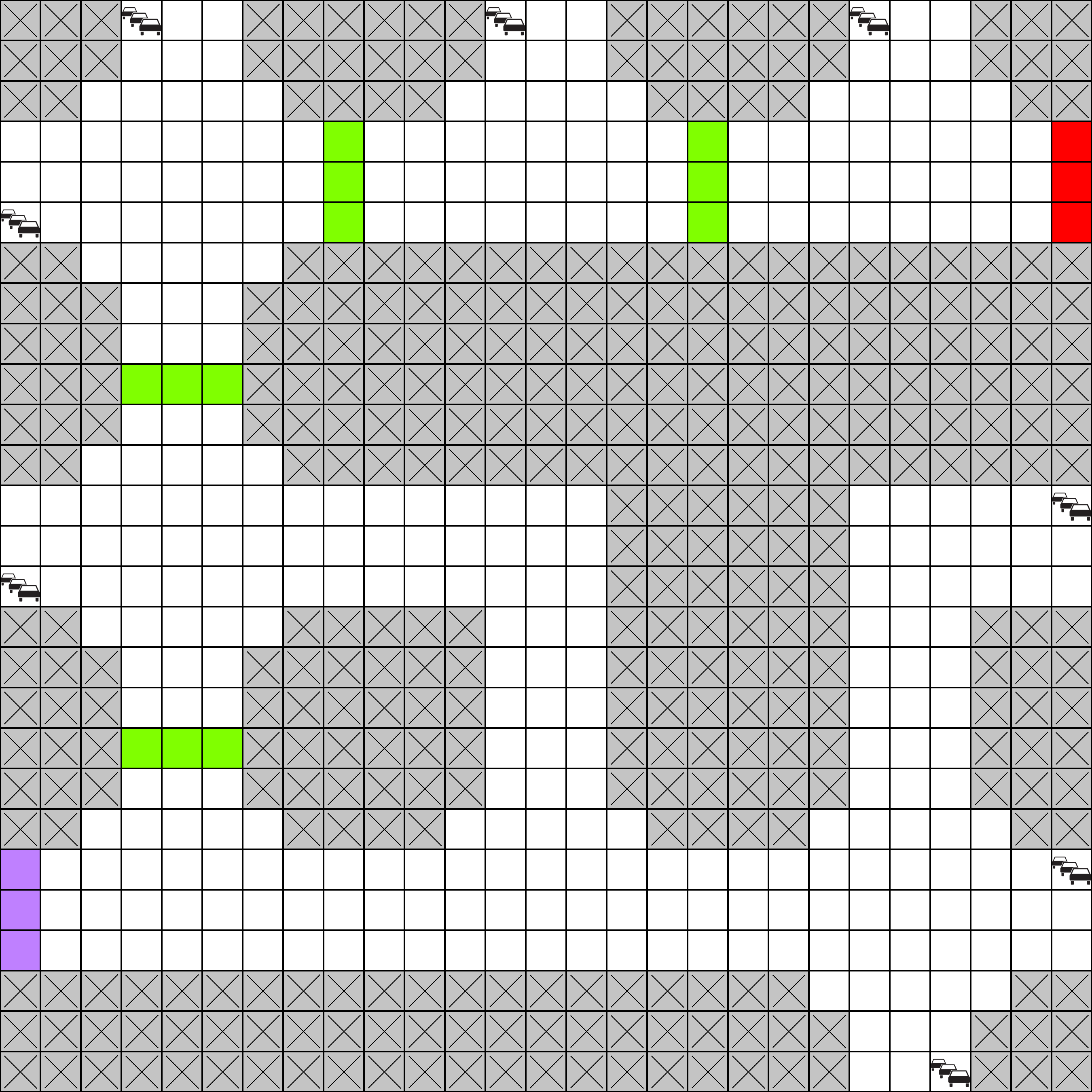

benchmark_3x3	3 × 3	27 × 27	353

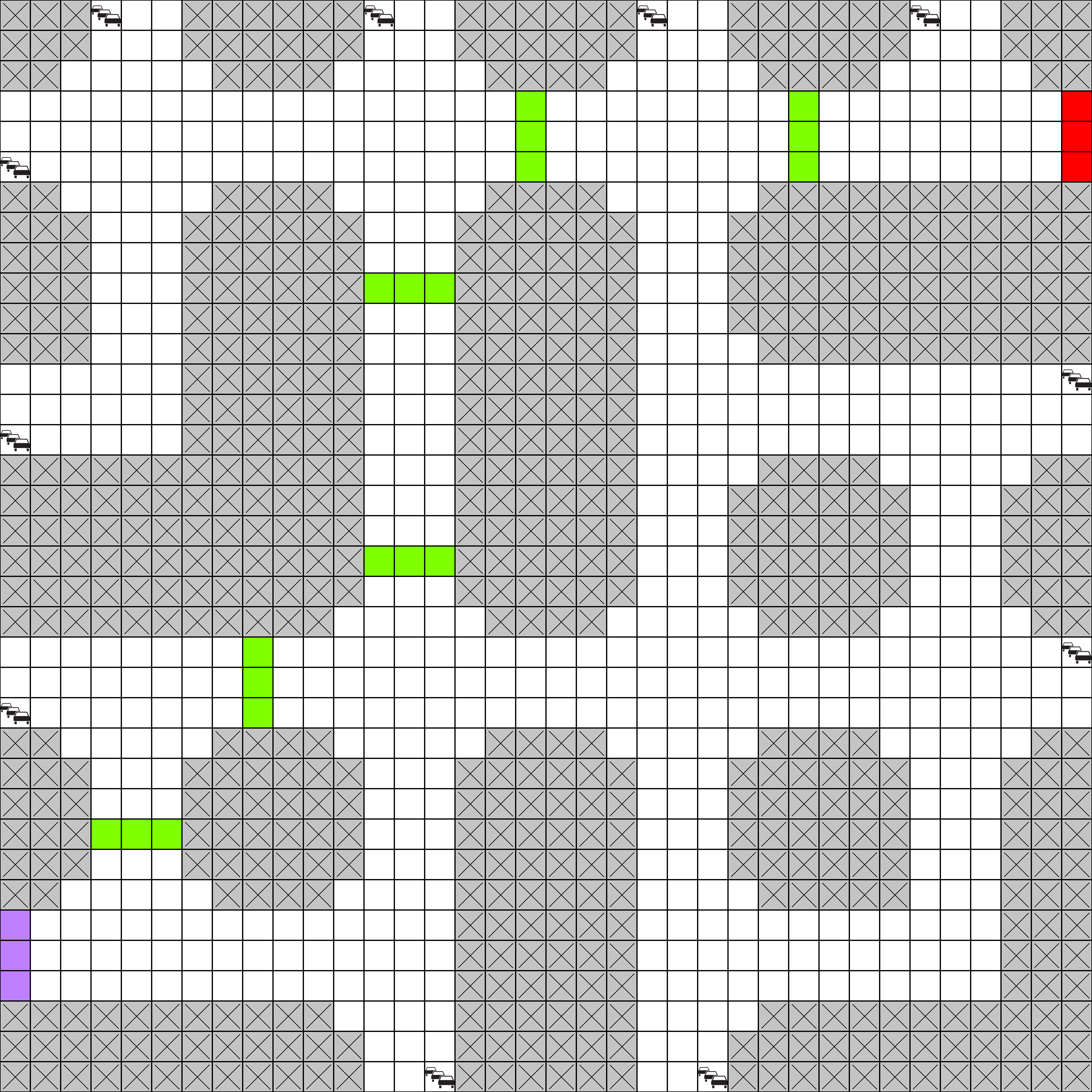

benchmark_4x4	4 × 4	36 × 36	641

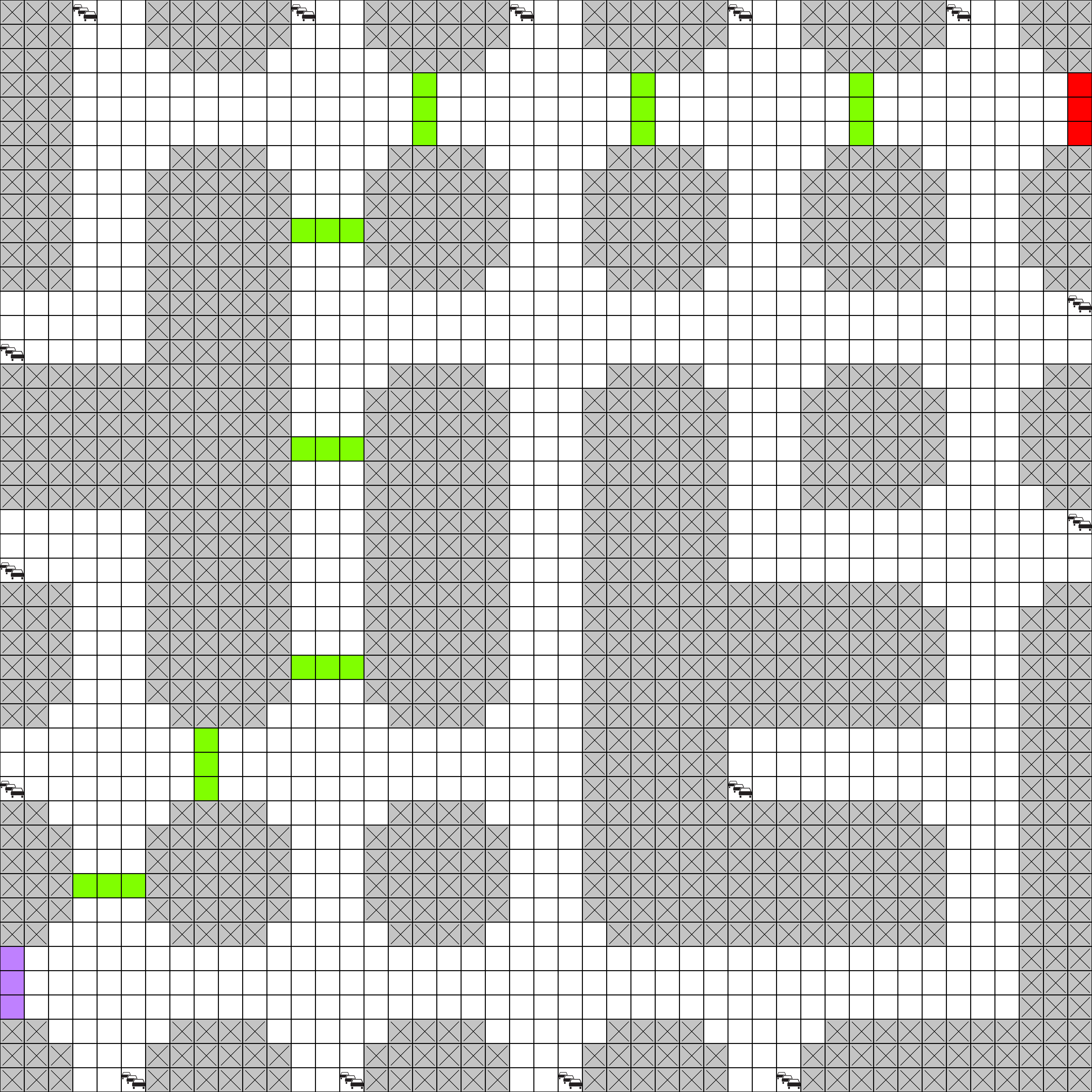

benchmark_5x5	5 × 5	45 × 45	1007

Discoverable cells counts the number of (x,y) pairs the agent can actually occupy: everything that is not a wall and is reachable from the start. In these four maps every non-wall cell is reachable, so the count equals the road area.

Load one by passing its name as map_path. Note that this disables procedural generation:

import gymnasium as gym

env = gym.make("pgtg-v5", map_path="benchmark_3x3")

Loading and authoring map files

map_path also accepts a path to your own map file (the .json extension is optional):

env = PGTGEnv(map_path="path/to/my_map.json")

Generating and saving a map

The pgtg.map.authoring module can generate a single random map and save it to disk, so you can freeze a specific layout for reuse:

from pgtg.map.authoring import create_custom_map

create_custom_map(
    "my_map.json",
    width=3,
    height=3,
    seed=999,
    connections_percentage=0.8,
    start_position=(0, 2, "west"),
    goal_position=(2, 0, "east"),
    obstacle_probability=0.0,
)

Extra keyword arguments are forwarded to RandomMapContext.

Note

We plan to publish a tile/map editor tool soon, which will allow interactive editing of tilests and maps, including obstacle placement and traffic lange placement.

Map file format

A saved map is a JSON object:

{
  "width": 3,
  "height": 3,
  "map": [
    [ {"exits": [1, 0, 0, 0]}, {"exits": [1, 1, 0, 0]}, ... ],
    ...
  ],
  "start": [0, 0, "west"],
  "goal": [2, 2, "east"]
}

• width / height — map size in tiles.
• map — a height × width grid of tile objects. Each tile has an exits list [north, east, south, west]. A tile may also carry an authored obstacle via "obstacle_type" ("ice", "sand", "broken_road", "traffic_light", or a registered custom obstacle name) and an "obstacle_mask" (see Custom Tiles & Maps).
• start / goal — [x, y, direction], where direction is "north", "east", "south", or "west". Start and goal must lie on a map border.

For customizing the contents of tiles (walls, lanes, obstacle masks), see Custom Tiles & Maps.
